- FULLY INSULATED, 1-3/4" (44mm) OVERALL DOOR THICKNESS

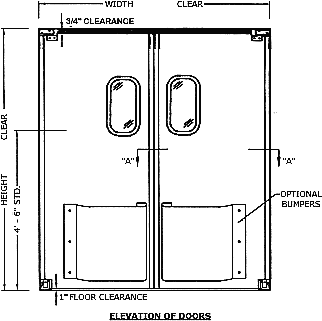

- 10-1/2" X 23" (267mm x 584mm) RECTANGULAR SEALED VISION PANEL EACH LEAF WITH RADIUS GASKET
- REMOVABLE FULL PERIMETER SEALS
- PERMANENT COLOR FACING
- MANUFACTURED TO FIT OPENING (+0",-1/8" -- 0mm, 3.2mm TOLERANCE)
- JAMB GUARDS 8-3/4" (222mm) HIGH STANDARD
OPTIONAL EXTRAS:
- PRE-HUNG IN ALUMINUM FRAME
- BUMPERS - MOLDED POLYETHYLENE
-- HEIGHT 12", 24", 36", 48" - IMPACT PANELS
-- PAD TYPE IN VARIOUS HEIGHTS - CAM SWING 90° X 90°
-- 90° x 135° -- 90° X 180° - PRE-HUNG IN ALUMINUM FRAME
WINDOWS (DOUBLE-GLAZED):
- POLYCARBONATE - 1/8" THICK, FLUSH MOUNTED:
-- 11-1/2" x 15 1/2" (292mm x 394mm)
-- 14" X 16" (356mm x 406mm)
-- 16" x 18" (406mm x 457mm)
-- 24" x 24" (610mm x 610mm)
WITH STAINLESS STEEL, OFFSET PIVOT "EZ-HANG" HARDWARE

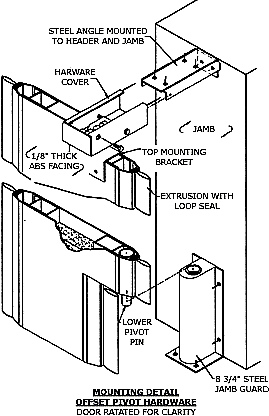

Mounting Hardware
CAM LIFT HARDWARE 90° X 90°
1-1/2" (38mm) RISE IS STANDARD)
WHERE REQUIRED, SPECIFY ALTERNATE RISE CAM
(3/4" (19mm) DEEP SEAT CAM
CAM HARDWARE FACTORY ALIGNED AND PRE-PINNED
