TL 250 Door Specifications:

• 1/4" (6.4mm) MINIMUM DOOR THICKNESS
• 8" X 10"  (203mm x 254mm) VISION PANEL EACH LEAF
• EZ-HANG OFFSET PIVOT HARDWARE
• PERMANENT COLOR FACING: BEIGE, CLOUD GREY, BLACK, CHARCOAL GREY
• 8-3/4" (222mm) STEEL JAMB GUARD

OPTIONAL EXTRAS:

• PRE-HUNG IN ALUMINUM FRAME
• ABS IMPACT PLATES
• VINYL IMPACT PANELS
  -- 12", 24", 36", 48" HEIGHTS
  -- (305mm, 610mm, 914mm, 1219mm)
• OPTIONAL FACING COLORS

• POLYCARBONATE - 1/8" (3,2mm) THICK, FLUSH MOUNTED:
  -- 8"  x 10" (203mm x 254mm)  (STANDARD)
  -- 11-1/2" x 15-1/2" (292mm x 394mm)
  -- 14" X 16" (356mm x 406mm)
  -- 16" x 18" (406mm x 457mm)

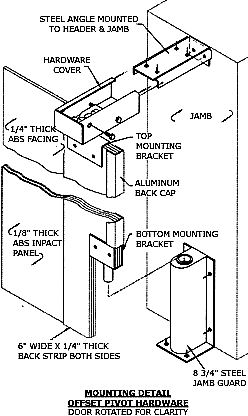

Mounting Detail Offset Pivot Hardware
