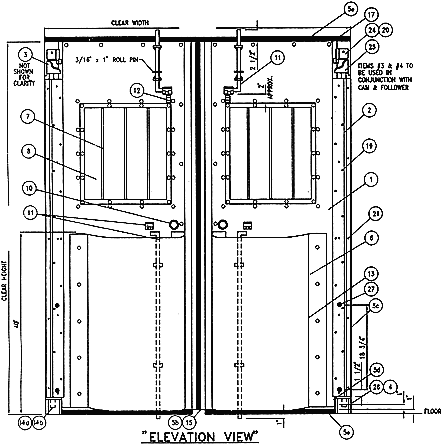

Steel-Lite Door Specifications:

GENERAL CONSTRUCTION:

1. 16 GAUGE GALVANIZED STEEL FACING
2. 11 GAUGE ANODIZED ALUMINUM FULL HEIGHT MOUNT ASSEMBLY
3. GALVANIZED CAM SHIELD
4. 7/16" (11.1mm) - 14 TAMPER PROOF HARDWARE FASTENERS
5. FULL PERIMETER REINFORCED AIR SEALS:
   1. HEADER
   2. NOSE
   3. JAMB
   4. HARDWARE CUT CUTS
   5. TOP AND BOTTOM MOUNTED AIR SEAL
6. HIGH-IMPACT, LOW FRICTION LINEAR POLYETHYLENE BUMPER
7. 5/8" (15.9mm) DIA. . STEEL SECURITY BARS H.R. HEAT TREATED
8. 1/8" (3.2mm) THICK DOUBLE GLAZED VISION PANELS U.L LISTED AS BURGLARY RESISTANT G.E. LEXAN POLYCABONATE
9. POLYSTYRENE FOAM CORE (NO C.F.C.)
10. 2" (50.8mm) I.D. LOCKING BUSHING  WITH SEAL
11. 5/8" (15.9mm) DIA. CANEBOLTS -- TOP CANE BOLT AND 42" (1067mm) BOTTOM CANE BOLT
12. TOP CANE BOLT SAFETY CLIP
13. LOW PROFILE 3/8" (9.5mm) - 16 TRUSS HEAD BOLTS
14.
    1. DOUGLAS FIR STILE
    2. 1-5/16" O.D. x 1/8" (33.3mm x 3.2mm) WALL STEEL TUBING
15. 1/8" (3.2mm) VINYL SAFETY CUSHIONED NOSE
16. 16 GA INTERNAL STEEL CHANNEL FRAMING
17. #30 STEEL CHERRY MATE RIVETS, PLATED; FULL PERIMETER
18. 2-l/2" x 1-1/4" x 16 GA (63.5mm x 31.8mm x 16 GA) DOUBLE CHANNEL NOSE PIECE
19. #12 - 1/4" (6.4mm)PH. FH. TYPE A MOUNT ASSEMBLY SCREWS
20. 3/8" (9.5mm) DIA. X 2" (50.8mm) HARDENED STEEL ROLL PIN
21. 5/16" X 1-7/8" (7.9mm x 47.6mm) STEEL OVER HEAD SEMI TUBULAR RIVETS, PLATED
22. STEEL THREADED COUPLING NUTS, PLATED
23. 1-1/2"  x  2"  x 16 GA (38.1mm x 50.8mm x 16 GA) DOUBLE CHANNEL BOX FRAME
24. CAM FOLLOWER
25. 3/4" (19mm) RISE V-CAM (DETENTION GRADE LOW INERTIA) 1-1/2" (38.1mm) RISE V-CAM OPTIONAL
26. COMBINATION BOTTOM BEARING AND JAMB GUARD (DETENTION GRADE)
27. LOWER MOUNT REINFORCEMENT TIES (2) 3/8" (9.5mm) MACHINE BOLT WITH THREADED INSERTS
