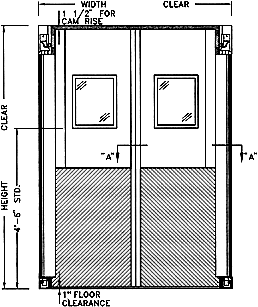

- FULLY INSULATED, 1- 13/16" (46mm) DOOR THICKNESS
- 14" X 16" (356 x 406mm) RECTANGULAR VISION PANEL EACH LEAF
- FULL PERIMETER SEALS
- TOP CAM SHIELD/A.B.S. PLASTIC
- SAFETY CUSHION NOSING
- 1- 1/2" (38mm) RISE V-CAM HARDWARE
- HOLD OPEN PIN
- 48" (1219mm) IMPACT PANELS/WRAP AROUND
- STEEL MOUNTING ASSEMBLY
- INTERNAL AND EXTERNAL REINFORCING BACK STRIPS
- MANUFACTURED TO FIT OPENING (+0",-1/8" -- 0, 3.2mm TOLERANCE)
Mounting Hardware
CAM LIFT HARDWARE 90° X 90°
(1- 1/2" (38mm)
RISE IS STANDARD)
WHERE REQUIRED, SPECIFY ALTERNATE RISE CAM
3/4" (19mm) DEEP SEAT CAM
CAM HARDWARE FACTORY ALIGNED AND PRE-PINNED.
OPTIONAL EXTRAS:
- BUMPERS
-- MOLDED POLYETHYLENE
-- HIGH IMPACT RUBBER - IMPACT PANELS
-- PAD TYPE (RECOMMENDED FOR BEST SEAL)
-- WRAP AROUND TYPE. - CAM SWING (90° X 90° - STANDARD)
-- 90° x 135° -- 90° X 180° - JAMB GUARDS WITH CUTOUTS
-- 3" DEEP x 8 3/4" HIGH (76mm x 222mm)
- POLYCARBONATE - 1/8" (3.2mm) THICK,
FLUSH MOUNTED:
-- 7-1/2" x 10-1/2" (191mm x 267mm)
-- 16" x 18" (406mm x 457mm)
-- 11-1/2" x 15-1/2" (292mm x 394mm)
-- 24" x 24" (610mm x 610mm) - "C" FRAME - 1/4" (6.4mm)
SINGLE PANE
-- 22" x 14" (559mm x 356mm)
-- 22" x 20" (559mm x 508mm)
-- 22" x 32" (559mm x 813mm) - FOR PRESSURE AND WIND LOADS:
-- ADJUSTABLE SPRING COMPENSATOR
-- TOP MOUNTED SPRING
