- FULLY INSULATED, 1 3/4" OVERALL DOOR THICKNESS

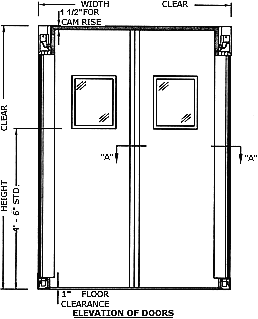

- 14" X 16" (356mm)x 406mm) RECTANGULAR VISION PANEL EACH LEAF
- FULL PERIMETER SEALS
- PERMANENT COLOR FACING
- TOP & BOTTOM CAM SHIELD/A.B.S. PLASTIC
- SAFETY CUSHION NOSING
- HOLD OPEN PIN
- MANUFACTURED TO FIT OPENING (+0",-1/8" -- 0mm, 3.2mm TOLERANCE)
Mounting Hardware
CAM LIFT HARDWARE 90° X 90°
(3/4" (19mm) RISE IS STANDARD)
WHERE REQUIRED, SPECIFY ALTERNATE RISE CAM
1-1/2" (38mm) DEEP SEAT CAM
CAM HARDWARE FACTORY ALIGNED AND PRE-PINNED
- BUMPERS - MOLDED POLYETHYLENE
-- HEIGHT: 12", 24", 36", 48"
-- (305mm, 610mm, 914mm, 1219mm) - IMPACT PANELS
-- PAD TYPE (RECOMMENDED FOR BEST SEAL)
-- WRAP AROUND TYPE. - CAM SWING (90° X 90° - STANDARD)
-- 90° x 135° -- 90° X 180° - JAMB GUARDS WITH CUTOUTS
-- 3" DEEP x 8 3/4" HIGH (76mm x 222mm)
-- COMBO JAMB GUARD BOTTOM BEARING
- POLYCARBONATE - 1/8" (3.2mm) THICK,
FLUSH MOUNTED:
-- 7-1/2" x 10-1/2" (191mm x 267mm)
-- 16" x 18" (406mm x 457mm)
-- 11-1/2" x 15-1/2" (292mm x 394mm)
-- 24" x 24" (610mm x 610mm) - FOR PRESSURE AND WIND LOADS:
-- ADJUSTABLE SPRING COMPENSATOR
-- TOP MOUNTED SPRING
